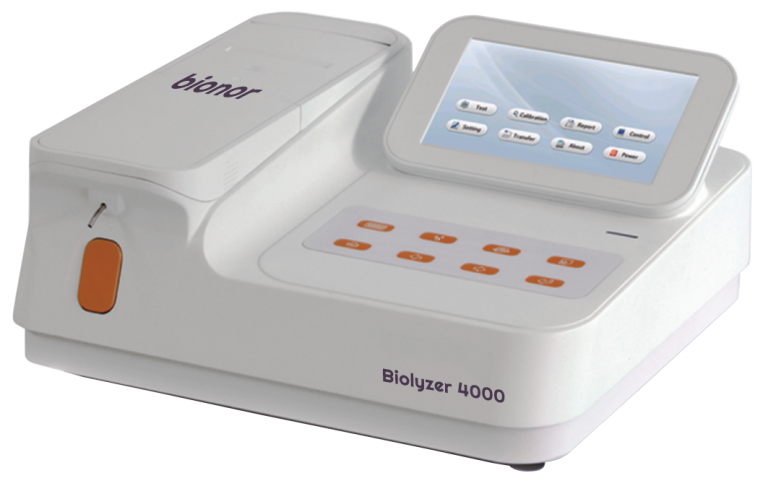

Biolyzer 4000

Biolyzer 4000

Biolyzer 4000 is a compact, simple, reliable semiautomated analyzer capable to perform tests on whole blood,
serum, plasma, cerebrospinal fluid or urine samples to determine concentration of analytes of Routine Biochemistry, Electrolytes, Enzyme etc. Simple on-board step by step instructions ensures consistency of results on which
you can rely upon.

CLINICAL

Autoimmune (Turbidometreic method) – CRP, IgA, IgG
Anaemia – Hemoglobin, Fe, TIBC, Transferrin, GDH
Basic Metabolic Profile – Amylase, Albumin, Glucose, Globulin, HBA1C, HBD, Lipase, LDH
Cardiac – CK-MB, CK-NAC, CRP, Cholesterol, LDH, Lipoprotein-a, Triglyceride
Diabetes – Glucose, Glucose Hexokinase, HBA I c, Microalbumin, Cholesterol, Total Protein
Electrolytes – Ammonia, Bicarbonate, Calcium, Chloride, Iron, Magnesium, Phosphorous, Potassium, Sodium, Zinc
Inflammation (Turbidometric method) – ASO, CRP
Liplsn Profile – Apolipoprotein A, Apolipoprotein B, Cholesterol, HDL-Cholestrol, Lipoprotein-a, LDL-Cholesterol, Lipase, Triglyceride, VLDL
Liver Profile – Aldolase, Albumin, Alkaline Phosphatase, Acid Phosphatase, Bilirubin, Cholinesterase, GGT, Micro albumin, SGOT, SGPT
Kidney Profile – Blood Urea Nitrogen, Creatinine, Globulin, Micro protein, Total Protein, Urea, Uric acid, Phosphorous, Potassium, Sodium, Urinary protein

VETERINARY

Albumin, Alkaline Phosphatase, Amylase, Ammonia, Bilirubin, Calcium, Chloride, Cholesterol, Cretinine, Cholinesterase, CKNAC, Glucose, GGT, Glutamate dehydrogenase (GDH), HDL-Cholesterol, Hemoglobin, Iron, Lipase, Lactate, Magnesium, Micro albumin, Micro protein, Phosphorous, Potassium, Sodium, SGOT, SGPT, Total Protein, Triglyceride, Urea, Uric acid

RESEARCH, FOOD & WATER

Acetic acid, Calcium, Copper, Chloride, Ethanol, Glucose, Glycerol, Iron, Lactic acid, Sodium, Potassium, Zinc

Technical Specification

Flow Cell- 30 μlquartz

Light Source- Quartz Halogen lamp 6V/10W

Temperature- 25°C, 30°C, 37°C, Room Temperature

Photodetector- By peltier element

Cuvette Option- UV Enhanced Silicon photodiode 10mm square Cuvette/
Round Cuvette (optional)

Filter- 7 interference filters (340, 405, 500, 546, 578, 620 & 670nm) with 1 optional Positions

Filter Selection- Stepper motor based filter wheel

Reaction Volume- 200~6000 μl

ASpiration- Peristaltic Pump with stepper motor

Photometric Range- 0.000 to 2.50 Absorbance

Resolution- 0.001 Abs(Displayed), 0.0001 Abs(Calculated)

Linearity- ≤1%

Blanking- Automatic Zero Setting

Calibration- Automatic against standard with auto storage of graph for all tests

Total Programmable Tests- 75

Quality Control- 2 Controls per test: Westguard multi-rule & Levey Jenning

Display- 800 x 480 pixel, Color TFT (7″)

Screen Touch- Yes

Printer- Graphical inbuilt thermal printer

Air Purge- After each sample

Keyboard- Qwerty alphanumeric membrane keyboard 8 dedicated
functional keys

Communication Interface- RS 232, USB port, LAN, SD card slot

Memory -10,000 test results
– 2 types QC results and graph for all tests
– Calibration curve and results for all tests
– Reagent blank for all tests

Result Recall- Test name, Patient name, Sample ID, Date

LIS Software- Available (optional)

Telemedicine Port- Through WiFi (optional)

Dimension- 362(W)×350(D)×180(H) mm

Power Supply- ~100-240V, 50Hz/60Hz

Weight- 6.5Kg
